Local-first acoustic fingerprint search, alignment, and WASM workbench for MoonBit.

audio

fingerprint

alignment

wasm

Download zip

Author

lin2077-zeming

Version

0.1.0

License

Apache-2.0

Repository

github.com/lin2077-zeming/MoonEcho

Last updated

17 hours ago

Downloads

Dependencies

#MoonEcho

MoonEcho is a local-first acoustic fingerprint search and audio alignment toolkit written in MoonBit.

The project is in milestone M5: the core library, native CLI, benchmarks, WASM browser workbench, and release materials are complete. Publication commands and release checks are documented in docs/release.md.

#Status

Project name: MoonEcho / 月响
Version: 0.1.0
Main language: MoonBit
Target: native and WebAssembly
License: Apache-2.0
Audio input dependency: Ridge-Lab/moonwavkit@0.1.3
Spectrum dependency: chgttyyr/MoonSpectrum@0.2.2

#Requirements

MoonBit toolchain 0.10.14 or newer; CI is pinned to 0.10.14+7d59c7ec9
Node.js 22 or newer for the WASM browser demo and its smoke test

Install MoonBit from moonbitlang.com/download. The native CLI does not require Node.js.

#Install

git clone https://github.com/lin2077-zeming/MoonEcho.git
cd MoonEcho
moon update
moon check --target all --deny-warn
moon test --target native --deny-warn

#Quick Start

moon check
moon test
moon run cmd/moonecho
moon run examples/basic
moon run examples/wav-adapter
moon run examples/spectrum
moon run examples/fingerprint
moon run examples/index
moon run examples/match

CLI:

moon run cmd/moonecho -- version
moon run cmd/moonecho -- index --input track.wav --output track.idx --name demo
moon run cmd/moonecho -- index --manifest tracks.tsv --output library.idx
moon run cmd/moonecho -- index --input clip.wav --output library.idx --id 2 --append
moon run cmd/moonecho -- match --index track.idx --input clip.wav
moon run cmd/moonecho -- info --index library.idx --json
moon run cmd/moonecho -- bench --json

WASM browser demo:

npm run build:demo
npm run serve:demo

Open http://127.0.0.1:4173, load the built-in chirp corpus, build the index, and run the query. The demo requires WebAssembly GC support; see docs/wasm-demo.md.

Expected CLI output:

MoonEcho (月响) v0.1.0: Local-first acoustic fingerprint search and audio alignment toolkit

#Minimal API

///|
fn main {
  println(status())
}

#Audio Adapter

MoonEcho intentionally reuses MoonWavKit for RIFF/WAVE parsing, PCM decoding, generic PCM processing, and linear resampling. MoonEcho's adapter keeps a stable local API for the fingerprint pipeline:

///|
fn inspect_wav(bytes : Array[Int]) -> Unit raise {
  let audio = @audio.load_wav_mono(bytes, target_sample_rate=16000)
  println(audio.frame_count())
}

#Spectrum Adapter

MoonSpectrum provides the FFT, STFT, and synthetic signal generators. MoonEcho adapts them to normalized audio buffers and its own error boundary:

///|
let audio = @audio.load_wav_mono(bytes, target_sample_rate=16000)

///|
let config = @spectrum.SpectrumConfig::new(window_length=1024, hop_size=512)

///|
let result = @spectrum.spectrogram(audio, config)

///|
let peaks = @spectrum.extract_peaks(result, @spectrum.PeakConfig::new())

#Fingerprint v1

MoonEcho's fingerprint layer turns spectral peaks into pairwise hashes and serializes them in a deterministic binary format:

///|
let config = @fingerprint.HashConfig::new()

///|
let fp = @fingerprint.fingerprint(
  peaks,
  config,
  frame_count=result.magnitudes.length(),
  bin_count=result.frequencies.length(),
)

///|
let encoded = @fingerprint.encode(fp)

The exact byte layout is documented in docs/fingerprint-v1.md.

#Index Snapshot v2

The index layer maps each fingerprint hash to track/frame/bin postings and persists the full structure plus its preprocessing profile with a deterministic binary snapshot:

let index = @index.FingerprintIndex::new(config)
index.add_track(1, "track-a", fingerprint)
let snapshot = @index.encode(index)
let restored = @index.decode(snapshot)

The exact byte layout is documented in docs/index-v2.md. Legacy v1 snapshots remain readable; see docs/index-v1.md.

#Candidate Matching

The matching layer votes on (track_id, offset) pairs produced by shared fingerprint hashes, then ranks tracks and computes confidence and margin:

let config = @match.MatchConfig::new(min_votes=3, min_confidence=0.2)
let result = @match.match_fingerprint(index, query, config)
println(@match.status_label(result.status))

The scoring algorithm is documented in docs/matching.md. Sample-accurate refinement is documented in docs/alignment.md.

#CLI

The command-line façade wires audio decoding, spectrum extraction, fingerprint encoding, index snapshots, batch/append indexing, inspection, candidate matching, and benchmarks into one executable:

moonecho index   # single track, manifest, or append
moonecho match   # search and optional sample alignment
moonecho info    # inspect snapshot metadata and tracks
moonecho bench   # robustness and performance report

index, match, info, and bench support --json for automation.

See docs/cli.md for all options and reproducibility notes.

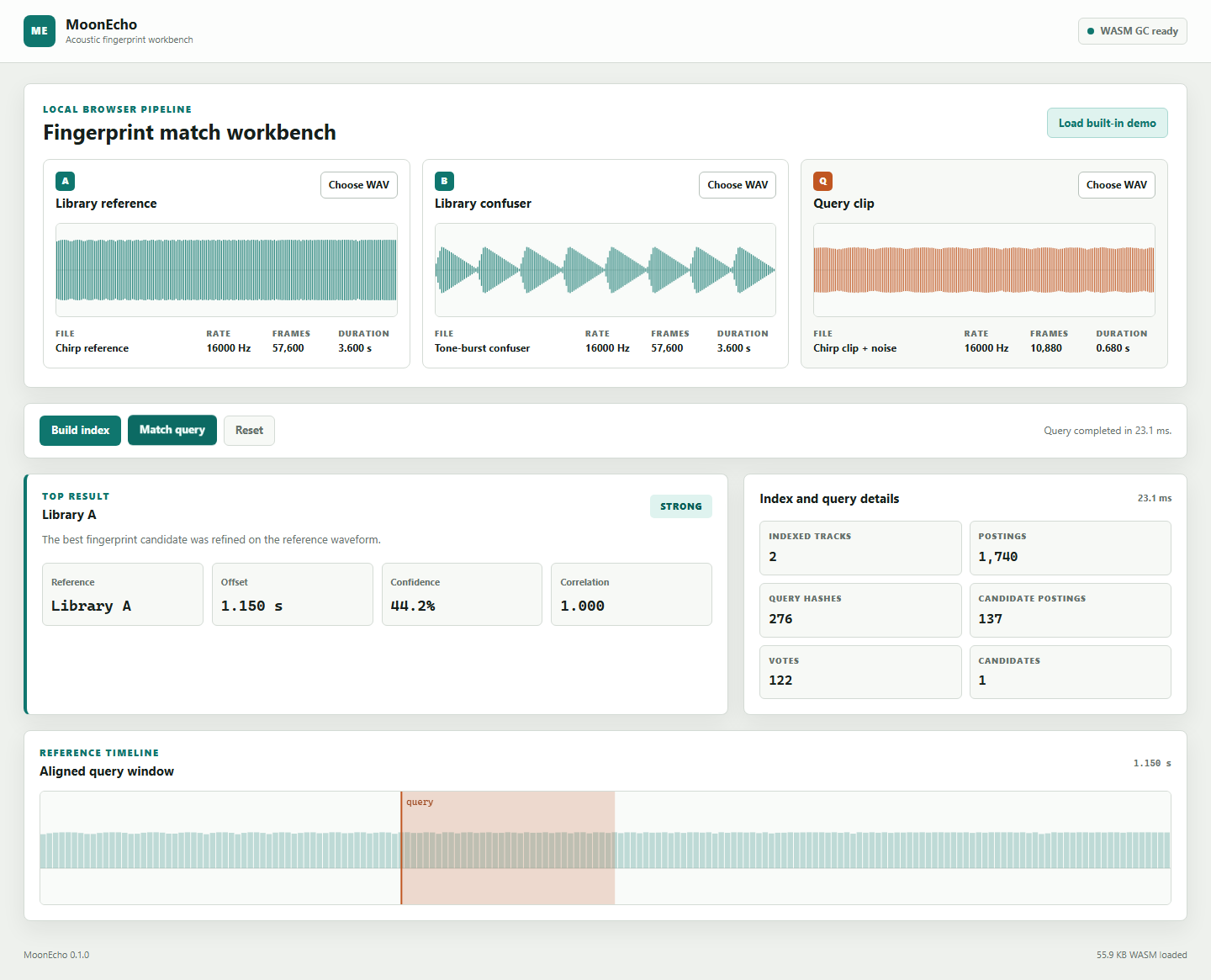

#Browser Demo

The WASM workbench is a genuine wasm-gc library boundary. JavaScript loads WAV bytes through two small host functions; the MoonBit module performs the fingerprint pipeline and sample alignment.

The page includes a deterministic self-contained corpus without bundled audio assets. It can also accept three user WAV files: two library tracks and one query clip.

The exact ABI and verification commands are documented in docs/wasm-demo.md.

The robustness and benchmark harness is documented in docs/benchmark.md.

Dependency licenses are listed in THIRD_PARTY_NOTICES.md. The Mooncakes.io release checklist is in docs/release.md.

The final acceptance map is in docs/acceptance.md, and the version history is in CHANGELOG.md.

#License

MoonEcho is released under the Apache-2.0 license. Third-party package notices are recorded in THIRD_PARTY_NOTICES.md.

#Design References

MoonEcho's landmark-style peak pairing and offset voting are based on the published acoustic fingerprinting approach introduced by Avery Wang for Shazam. The implementation is original MoonBit code.

The high-level algorithm was also informed by the open-source Dejavu project: https://github.com/worldveil/dejavu. No Dejavu source code was copied or translated. Dejavu is distributed under the MIT license.

#Roadmap

M0: project skeleton, README, LICENSE, CI, tests, first runnable example.
M1: WAV/PCM adapter over MoonWavKit, FFT/STFT adapter over MoonSpectrum, two-dimensional spectral peak extraction.
M2: fingerprint encoding, inverted index, snapshot format.
M3: matching, offset voting, confidence scoring, CLI.
M4: robustness tests, benchmarks, WASM demo.
M5: mooncakes.io release and final acceptance materials.

See docs/任务规划书.md for the full plan.
