#mizchi/tui

Terminal UI library for MoonBit with virtual DOM-based rendering.

Supported targets: js, native

#Features

  • Virtual DOM with diff-based ANSI rendering
  • Flexbox and CSS Grid layout (powered by mizchi/crater)
  • Reactive signals integration (mizchi/signals)
  • Styled UI components (@components)
  • Keyboard and mouse input handling

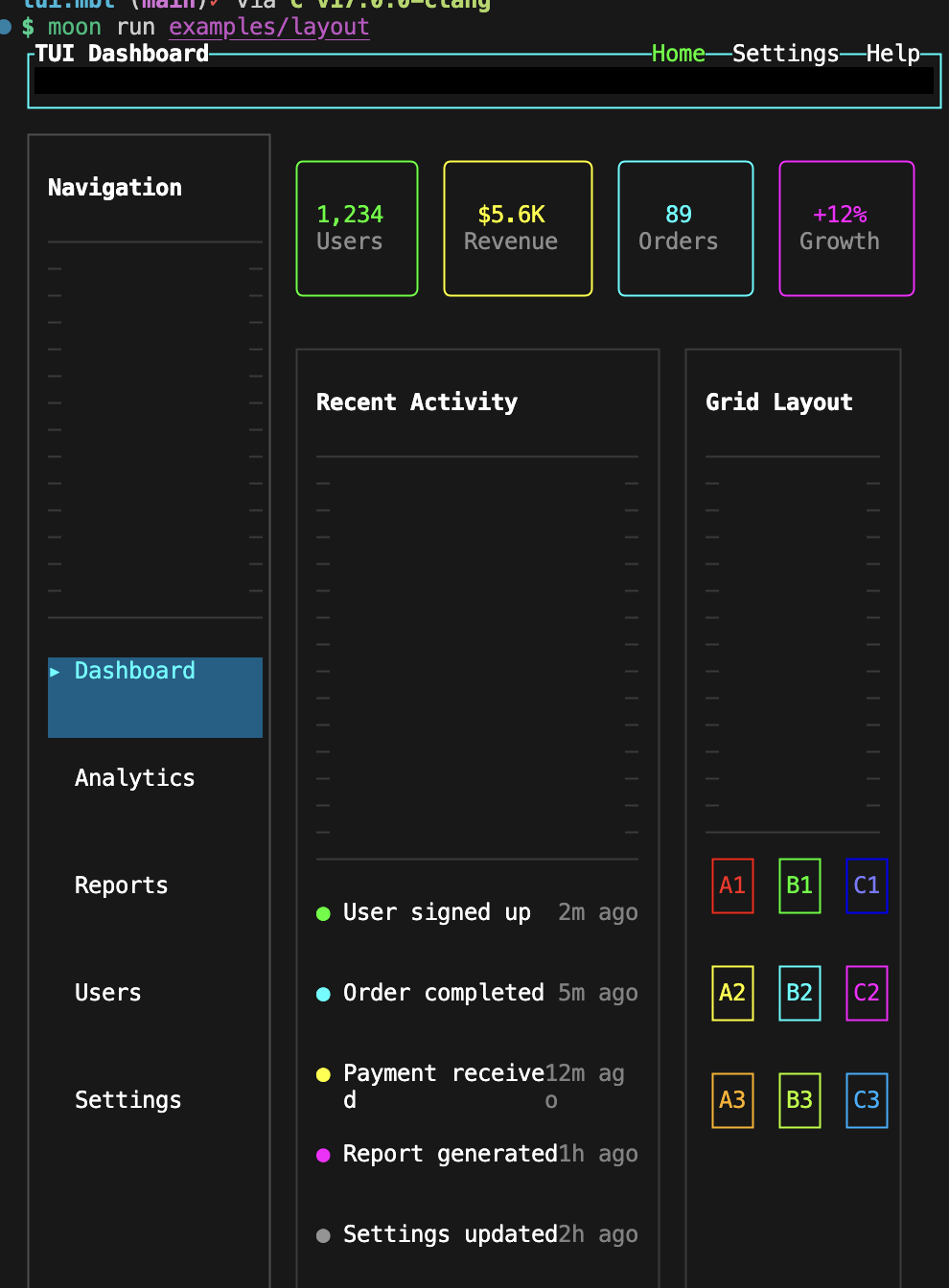

alt text

#Installation

{
  "deps": {
    "mizchi/tui": "0.9.0"
  }
}

#Package Structure

mizchi/tui/
├── vnode/      # Virtual DOM primitives (row, column, view, grid, text)
├── components/ # Styled UI components (button, modal, table, etc.)
├── headless/   # State types (ButtonState, InputState, etc.)
├── events/     # Input parsing (KeyEvent, MouseEvent)
├── render/     # ANSI rendering engine
├── io/         # Platform I/O (terminal size, keypress)
└── core/       # Low-level types (Component, Color)

#Quick Start

fn main {
  let node = @vnode.column(gap=1.0, padding=1.0, border="rounded", [
    @vnode.text("Hello, TUI!", fg="cyan", bold=true),
    @components.button("Click me"),
    @components.progress_bar(0.7),
  ])

  // Render to string
  let output = @vnode.render_vnode_once(80, 24, node)
  println(output)
}

#Layout Primitives (@vnode)

// Flex containers
@vnode.view([...])                    // column by default
@vnode.view(direction="row", [...])   // horizontal
@vnode.row([...])                     // shorthand for direction="row"
@vnode.column([...])                  // shorthand for direction="column"

// Grid layout
@vnode.grid(columns=[1.0, 2.0, 1.0], [...])  // 1fr 2fr 1fr
@vnode.grid_item(column_span=2, child=...)   // span multiple cells

// Named grid areas
@vnode.grid(
  areas=["header header", "sidebar main", "footer footer"],
  [
    @vnode.grid_area("header", header_content),
    @vnode.grid_area("sidebar", sidebar_content),
    @vnode.grid_area("main", main_content),
    @vnode.grid_area("footer", footer_content),
  ]
)

// Text
@vnode.text("Hello", fg="cyan", bold=true)

// Spacing
@vnode.spacer()      // flexible space
@vnode.hspace(2.0)   // horizontal space
@vnode.vspace(1.0)   // vertical space

#Styled Components (@components)

// Buttons
@components.button("Submit", state=@headless.ButtonState::Focused)
@components.icon_button("✕")
@components.text_button("Learn more")

// Form
@components.checkbox("Remember me", true)
@components.radio("Option A", true)
@components.switch(true, "Dark mode")
@vnode.input("value", placeholder="Enter text...")

// Selection
@components.listbox(items, selected_id)
@components.tab_bar(tabs, selected_id)
@components.combobox_trigger("Select...", open=false)

// Feedback
@components.progress_bar(0.5)
@components.spinner(tick)
@components.gauge("CPU", 0.75)
@components.sparkline(data)

// Modal
@components.modal("Title", [...])
@components.alert_dialog("Error occurred")
@components.confirm_dialog("Delete?")

// Dashboard
@components.table(columns, rows)
@components.stat("Users", "1,234")
@components.meter("Memory", 0.8)

#Layout Evaluation (experiments/eval_ui)

The experiments/eval_ui package provides a layout regression harness and layout-rect snapshots (IDs only, auto/root filtered).

# Base patterns
moon -C experiments/eval_ui run . -- --layout-snapshot

# Persona 5 patterns
moon -C experiments/eval_ui run . -- --layout-snapshot-p5

For running eval with layout-rect inference (no AA parsing), add --infer-layout:

moon -C experiments/eval_ui run . -- --infer-layout

Snapshots:
  • __snapshots__/eval_ui_layout.txt
  • __snapshots__/eval_ui_layout_p5.txt

#Examples

just run example=simple                    # Minimal counter app
moon run examples/simple --target js       # Run an example directly
moon run examples/command-launcher --target js
moon run examples/completion --target js
moon run examples/components --target js
moon run examples/editor --target js
moon run examples/form --target js
moon run examples/grid-area --target js
moon run examples/grid-layout --target js
moon run examples/kitty-graphics --target js
moon run examples/roguelike --target js
moon run examples/wizard --target js

Note: The chat example moved to mizchi/vivebox.

#Documentation

See docs/tutorial.mbt.md for detailed API documentation.

#License

MIT

#
A11yNode

source

#
AccordionState

source

Accordion panel state

#
App

source
using @mizchi/tui/render { type App }

App manages the render loop and diff-based updates

#
BorderChars

source

Re-exports for convenient access to commonly used types and functions Users can import @tui and access most APIs from there.

#
ButtonState

source

Button state enum

#
CharBuffer

source

Character-based framebuffer

#
CharCell

source

A single character cell in the terminal

#
Color

source
using @mizchi/tui/core { type Color }

Re-exports for convenient access to commonly used types and functions Users can import @tui and access most APIs from there.

#
Component

source

Re-exports for convenient access to commonly used types and functions Users can import @tui and access most APIs from there.

#
DisplayValue

source

Display value

#
EditConfig

source

Configuration for editable input behavior

#
FocusContext

source

Focus context for managing Tab navigation

#
FocusNav

source

Focus navigation helper for keyboard navigation

#
GridAutoFlowValue

source

Grid auto-flow value

#
HitTestResult

source

Hit test result

#
InputEvent

source

Input event

#
InputResult

source

Result of an input session

#
InputState

source

Input state for visual feedback

#
KeyEvent

source

Keyboard event

#
KeyModifier

source

Key modifiers

#
ModalState

source

Modal dialog state

#
MouseButton

source

Mouse button

#
MouseEvent

source

Mouse event

#
MouseEventType

source

Mouse event type

#
RenderStyleMap

source

Re-exports for convenient access to commonly used types and functions Users can import @tui and access most APIs from there.

#
Role

source
using @mizchi/tui/core { type Role }

Re-exports for convenient access to commonly used types and functions Users can import @tui and access most APIs from there.

#
SelectionState

source

Selection state for single-select components

#
SpecialKey

source

Special keys

#
TextContentMap

source

Re-exports for convenient access to commonly used types and functions Users can import @tui and access most APIs from there.

#
TextStyle

source

Text style for writing text

#
ToggleState

source

Toggle state for checkbox/switch

#
TuiEvent

source

TUI Event - passed to event handlers

#
TuiNode

source

Type alias for luna Node with TuiEvent and TuiAttrValue

#
VNodeApp

source

VNodeApp manages the vnode render loop with diff-based updates

#
ansi_full_reset

source
fn ansi_full_reset() -> String

Full terminal reset sequence for recovering from corrupted state

#
cleanup_stdin

source
fn cleanup_stdin() -> Unit

Disable raw mode and restore terminal settings

#
column

source
fn column(id? : String, gap? : Double, margin? : Double, margin_x? : Double, margin_y? : Double, padding? : Double, padding_x? : Double, padding_y? : Double, width? : Double, height? : Double, min_width? : Double, min_height? : Double, flex_grow? : Double, justify? : String, align? : String, border? : String, border_color? : String, bg? : String, role? : String, tab_index? : Int, on_click? : (
TuiEvent) -> Unit?, children : Array[
Node[
TuiEvent,
TuiAttrValue]]) ->
Node[
TuiEvent,
TuiAttrValue]

Column container (vertical flex)

#
disable_mouse

source
fn disable_mouse() -> String

#
disable_mouse_all

source
fn disable_mouse_all() -> String

Disable mouse motion tracking

#
dump_a11y_tree

source
fn dump_a11y_tree(nodes : Array[
A11yNode]) -> String

#
enable_mouse

source
fn enable_mouse() -> String

#
enable_mouse_all

source
fn enable_mouse_all() -> String

Enable mouse with motion tracking (reports move events even without button press)

#
enable_raw_mode

source
fn enable_raw_mode() -> Unit

Enable raw mode for character-by-character input

#
form_edit_config

source
fn form_edit_config(field_name : String, signal :
Signal[String], on_edit_start? : () -> Unit?, on_edit_end? : () -> Unit?, on_force_quit? : () -> Unit?) ->
EditConfig

Helper to create a standard edit config for form fields

#
fragment

source

Fragment

#
get_terminal_size

source
fn get_terminal_size() -> (Int, Int)

Get terminal size (columns, rows)

#
grid

source
fn grid(columns? : Array[Double], rows? : Array[Double], areas? : Array[String], auto_flow? : String, id? : String, gap? : Double, padding? : Double, padding_x? : Double, padding_y? : Double, width? : Double, height? : Double, border? : String, border_color? : String, bg? : String, role? : String, tab_index? : Int, children : Array[
Node[
TuiEvent,
TuiAttrValue]]) ->
Node[
TuiEvent,
TuiAttrValue]

Grid container with CSS Grid layout Supports both explicit columns/rows and named areas

#
grid_area

source

Grid area - place child in a named grid area Used with grid(areas=[...]) for semantic layout

#
grid_item

source

Grid item with placement control (explicit column/row positioning)

#
hspace

source

Horizontal space with fixed width

#
init_vnode_terminal

source
fn init_vnode_terminal(width : Int, height : Int, output_fn : (String) -> Unit, mouse? : Bool, raw_mode? : Bool) -> (
VNodeApp, () -> Unit)

Initialize a VNodeApp with terminal setup and return a cleanup function.

#
input

source
fn input(value : String, id? : String, placeholder? : String, state? :
InputState, fg? : String, bg? : String, placeholder_fg? : String, focus_border_color? : String, edit_border_color? : String, disabled_fg? : String, disabled_bg? : String, width? : Double, min_width? : Double, padding_x? : Double, padding_y? : Double) ->
Node[
TuiEvent,
TuiAttrValue]

Create an input component

#
input_plain

source
fn input_plain(value : String, placeholder? : String, state? :
InputState, fg? : String, placeholder_fg? : String) ->
Node[
TuiEvent,
TuiAttrValue]

Create an input field without border (inline style)

#
is_printable_char

source
fn is_printable_char(c : Char) -> Bool

Check if a character is printable (for IME input detection)

#
is_printable_string

source
fn is_printable_string(s : String) -> Bool

Check if a string is all printable characters (for IME input detection)

#
parse_input

source
fn parse_input(input : String) ->
InputEvent

Parse escape sequence
fn print_raw(s : String) -> Unit

Print string to stdout without newline

#
read_key

source
fn read_key() -> String

Read a single key from stdin (raw mode) Returns the key as a string (may be escape sequence)

#
render_once

source
fn render_once(width : Int, height : Int, component :
Component) -> String

Simple render function for one-shot rendering (no reactivity)

#
render_vnode_once

source
fn render_vnode_once(width : Int, height : Int, root :
Node[
TuiEvent,
TuiAttrValue]) -> String

Simple render function for one-shot rendering (no reactivity)

#
resolve_button_state

source
fn resolve_button_state(id : String, hover_id : String, focus? :
FocusNav?, disabled? : Bool) ->
ButtonState

Resolve button state from hover_id and optional FocusNav

#
row

source
fn row(id? : String, gap? : Double, margin? : Double, margin_x? : Double, margin_y? : Double, padding? : Double, padding_x? : Double, padding_y? : Double, width? : Double, height? : Double, min_width? : Double, min_height? : Double, flex_grow? : Double, justify? : String, align? : String, border? : String, border_color? : String, bg? : String, role? : String, tab_index? : Int, on_click? : (
TuiEvent) -> Unit?, children : Array[
Node[
TuiEvent,
TuiAttrValue]]) ->
Node[
TuiEvent,
TuiAttrValue]

Row container (horizontal flex)

#
run

source
fn run(render_fn : () ->
Component, on_event : (
InputEvent) -> Bool, mouse? : Bool, on_hover? : (String) -> Unit?) -> Unit

Run a TUI application with simplified lifecycle management. Handles terminal setup, event loop, and cleanup automatically.

Parameters:
  • render_fn: Function that returns the component tree
  • on_event: Event handler that returns false to quit
  • mouse: Whether to enable mouse support (default: true)

Example:
@tui.run(
  fn() { @tui.text("Hello") },
  fn(event) { if event.is_quit() { false } else { true } },
)

#
run_vnode_app

source
fn run_vnode_app(width : Int, height : Int, render_fn : () ->
Node[
TuiEvent,
TuiAttrValue], output_fn : (String) -> Unit) -> (() -> Unit)

Full-screen vnode app helper: sets up alt screen and handles cleanup

#
spacer

source

Flexible spacer

#
start_edit

source
fn start_edit(config :
EditConfig, current_value : String, on_complete : () -> Unit, confirm_on_shift_enter? : Bool, esc_cancels? : Bool) -> Unit

Start editing a field with cooked mode (IME support) This exits alternate screen temporarily for proper IME input confirm_on_shift_enter: if true, Shift+Enter confirms and Enter inserts newline esc_cancels: if false, Esc is ignored

#
start_edit_inplace

source
fn start_edit_inplace(config :
EditConfig, current_value : String, row : Int, col : Int, width : Int, height : Int, multiline : Bool, on_complete : () -> Unit, confirm_on_shift_enter? : Bool, esc_cancels? : Bool, on_lines_change? : (Int) -> Int?, on_completion? : (String, Int) -> String??) -> Unit

Start editing a field inplace (stays in TUI screen) row/col are 1-indexed ANSI coordinates width/height define the input area (supports multi-line wrapping) multiline: if true, Enter can insert newline when confirm_on_shift_enter is true confirm_on_shift_enter: if true, Shift+Enter confirms esc_cancels: if false, Esc is ignored on_lines_change: optional callback (line_count) -> new_height for dynamic resizing on_completion: optional callback (text, cursor_pos) -> completion_suffix for Tab completion

#
start_edit_inplace_in_bounds

source
fn start_edit_inplace_in_bounds(config :
EditConfig, current_value : String, bounds :
HitTestResult, multiline : Bool, on_complete : () -> Unit, confirm_on_shift_enter? : Bool, esc_cancels? : Bool, border? : Int, on_lines_change? : (Int) -> Int?, on_completion? : (String, Int) -> String??) -> Unit

Start editing within bounds (HitTestResult) with border adjustment. bounds.x/y are 0-indexed; row/col for ANSI are 1-indexed. on_completion: optional callback (text, cursor_pos) -> completion_suffix for Tab completion

#
start_keypress_listener

source
fn start_keypress_listener(handler : (String) -> Unit) -> Unit

Start keypress listener (raw mode) - blocks until stop_keypress_listener is called This provides the same interface as JS where the listener runs until stopped If called from within a handler (e.g., from restore_tui), just updates the handler

#
stop_keypress_listener

source
fn stop_keypress_listener() -> Unit

Stop keypress listener

#
text

source
fn text(content : String, fg? : String, bold? : Bool, underline? : Bool, role? : String) ->
Node[
TuiEvent,
TuiAttrValue]

Static text node

#
text_dyn

source
fn text_dyn(getter : () -> String, fg? : String, bold? : Bool, underline? : Bool, role? : String) ->
Node[
TuiEvent,
TuiAttrValue]

Dynamic text node

#
textarea

source
fn textarea(value : String, id? : String, placeholder? : String, state? :
InputState, rows? : Int, fg? : String, bg? : String, placeholder_fg? : String, focus_border_color? : String, edit_border_color? : String, min_width? : Double, padding_x? : Double, padding_y? : Double) ->
Node[
TuiEvent,
TuiAttrValue]

Create a textarea component (multi-line input)

#
view

source
fn view(direction? : String, id? : String, gap? : Double, margin? : Double, margin_x? : Double, margin_y? : Double, padding? : Double, padding_x? : Double, padding_y? : Double, width? : Double, height? : Double, min_width? : Double, min_height? : Double, flex_grow? : Double, justify? : String, align? : String, border? : String, border_color? : String, bg? : String, role? : String, tab_index? : Int, on_click? : (
TuiEvent) -> Unit?, children : Array[
Node[
TuiEvent,
TuiAttrValue]]) ->
Node[
TuiEvent,
TuiAttrValue]

Generic view container (flex layout with configurable direction) Default direction is column (React Native style)

#
vspace

source

Vertical space with fixed height

Source Files

Powered by MoonBit

Site sourceReport issuePackagesBuild queueSkillsStatistics

© 2026 mooncakes.io
